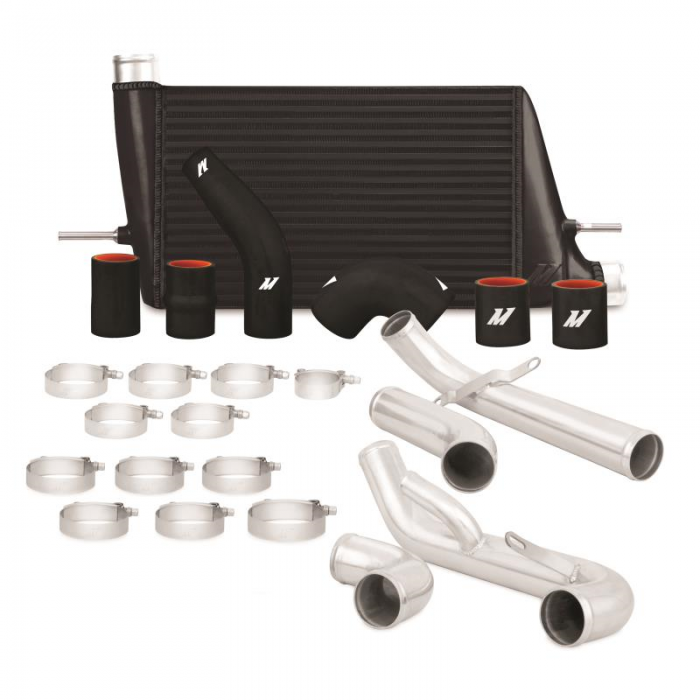

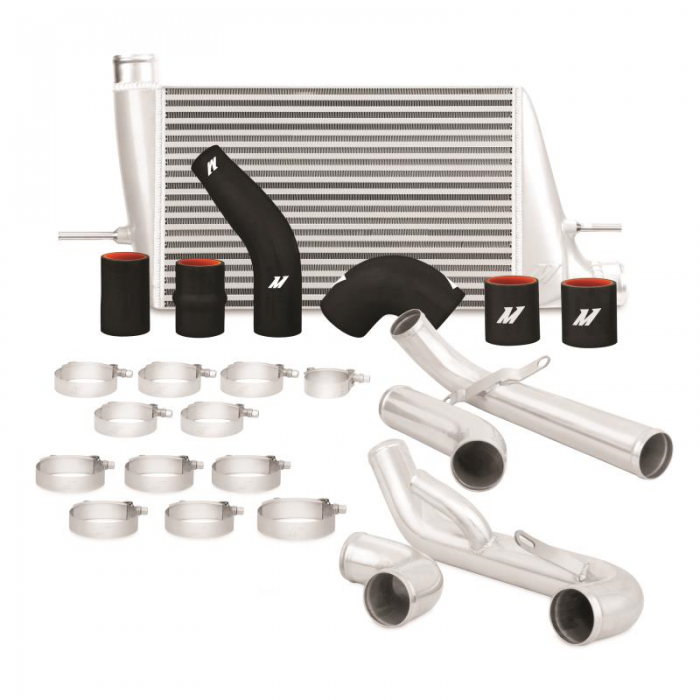

MISHIMOTO - PERFORMANCE INTERCOOLER KIT, EVO X
#MMINT-EVO-10KBK
#MMINT-EVO-10KSL
PRODUCT FEATURES
- Direct fit for the 2008+ Mitsubishi Lancer Evolution X
- 10 whp and 10 tq bolt-on power increase
- Efficient 3.5" thick bar-and-plate core provides optimal heat dissipation and low AITs
- Full aluminium cast end tanks provide increased durability and smooth, uninterrupted airflow
- Strategically designed fins for minimal pressure loss
- Substantial core volume will support vehicles up to 600 whp

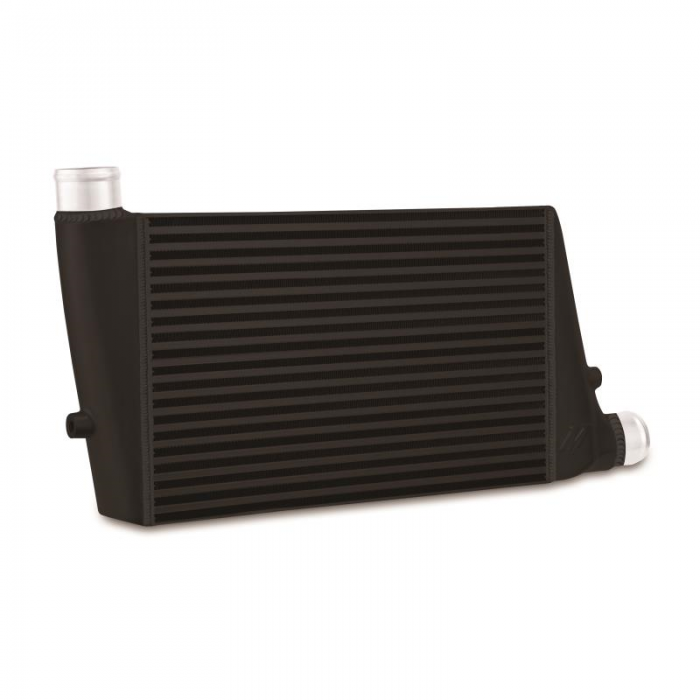

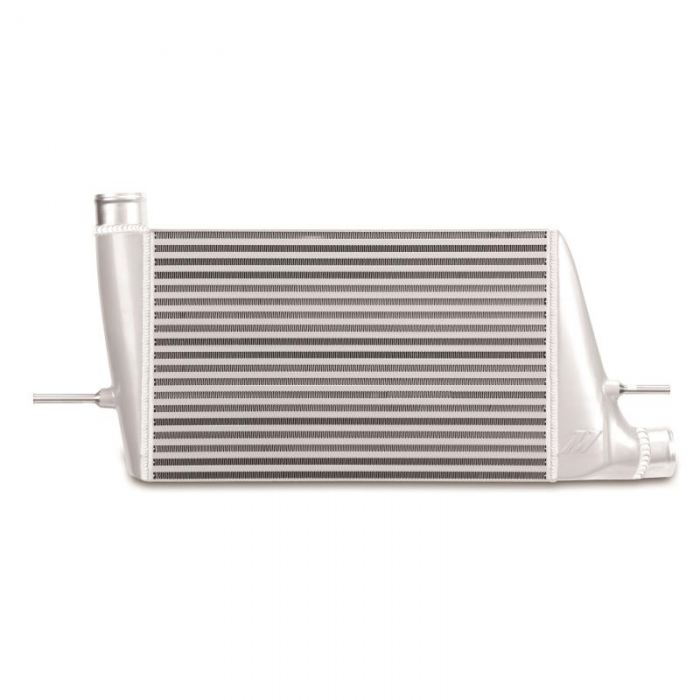

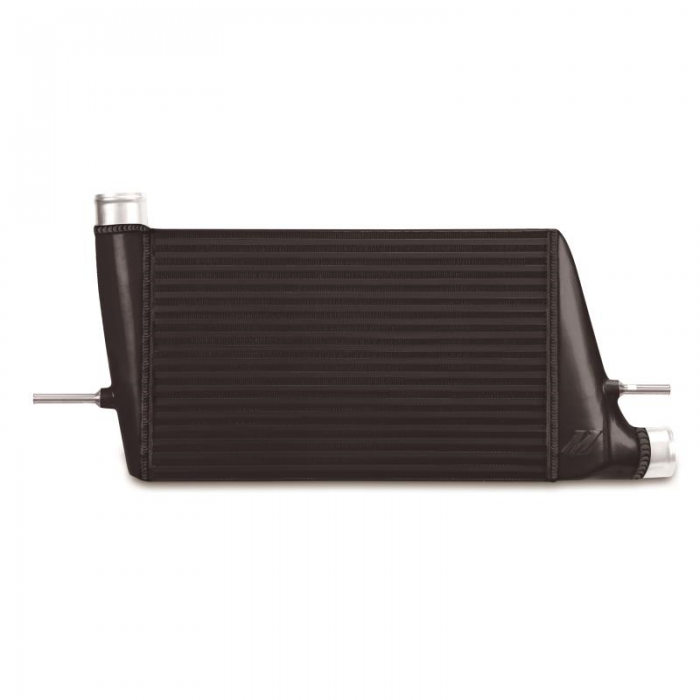

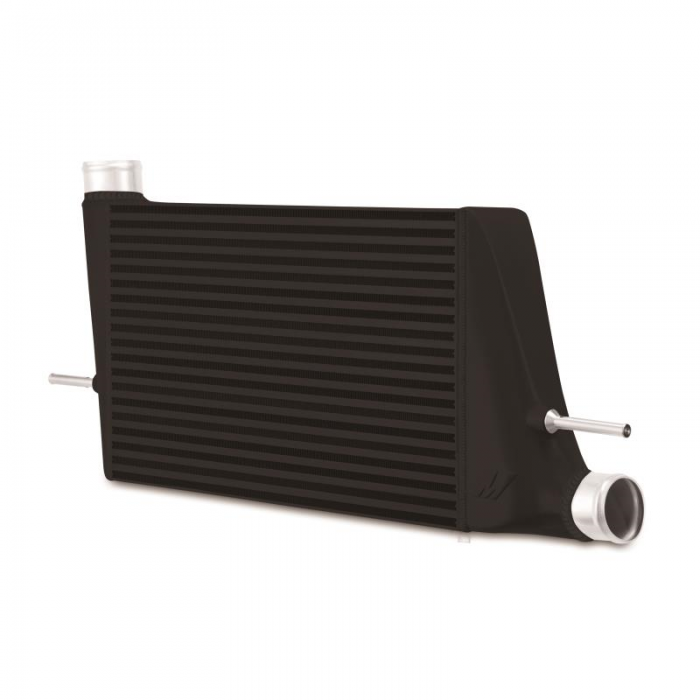

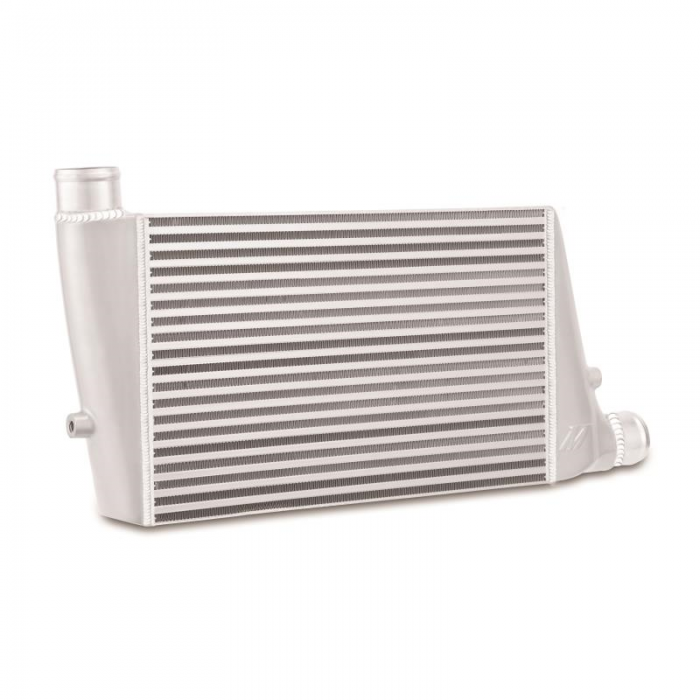

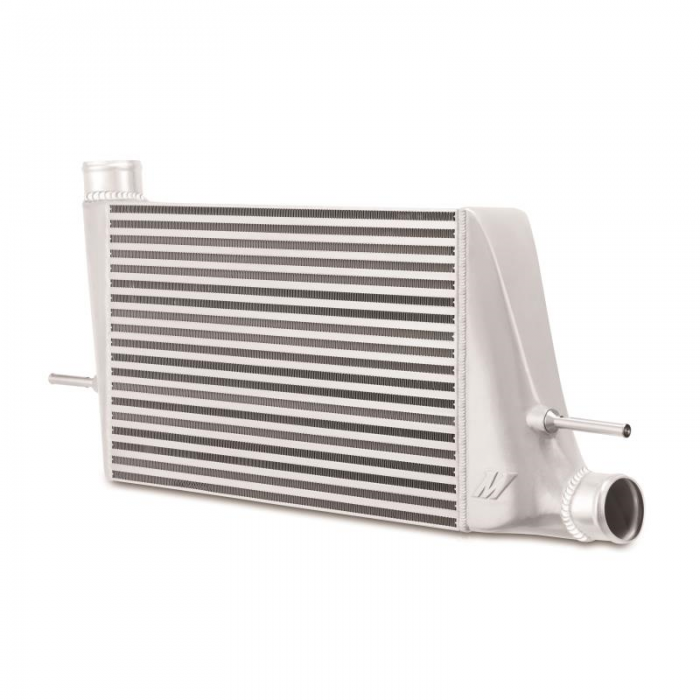

- Available with a powder-coated finish in Sleek Silver or Stealth Black
- Mishimoto Lifetime Warranty
- CARB EO #: D-759
DESCRIPTION
A high-horsepower Evo demands an intercooler that provides optimal airflow and a cool, dense charge of air. Modified vehicles running high-boost pressures often suffer from increased air intake temperatures (AITs) and heat soak, which can result in diminished performance. Keep your intake temperatures under control with the Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler.
This intercooler is a direct bolt-on unit engineered specifically for the Evo X. Thanks to an efficient 3.5" thick bar-and-plate core, this intercooler provides optimal heat dissipation and low AITs. The robust cast aluminium end tanks provide superior durability and smooth, uninterrupted airflow. The Mishimoto Mitsubishi Lancer Evolution X Performance Intercooler provides a dyno-proven increase of 10 whp and 10 tq, and it will support modified vehicles up to 600 whp! This Evo intercooler core is equipped with a strategic fin design that promotes substantial heat exchange while providing minimal pressure loss across the core. Whether you are making a pass at the drag strip or sliding around a rally stage, this intercooler will provide the cooling that your engine needs to perform at its best.
This Evo intercooler is available with a powder-coated finish in either Sleek Silver or Stealth Black. As with all our products, this intercooler includes the Mishimoto Lifetime Warranty.
PURCHASE INCLUDES
Mishimoto Intercooler
CNC Mounting Pegs
Mishimoto Lifetime Warranty
NOTES
This intercooler can be used with stock or aftermarket intercooler pipes. The CNC mounting pegs must be installed by the customer.
VEHICLE SPECS
| MAKE | Mitsubishi |
| ENGINE CODES | 4B11T |
| CHASSIS CODES | CZ4A |
PRODUCT SPECS
| INSTALLATION TORQUE SPECS | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). 22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M). |

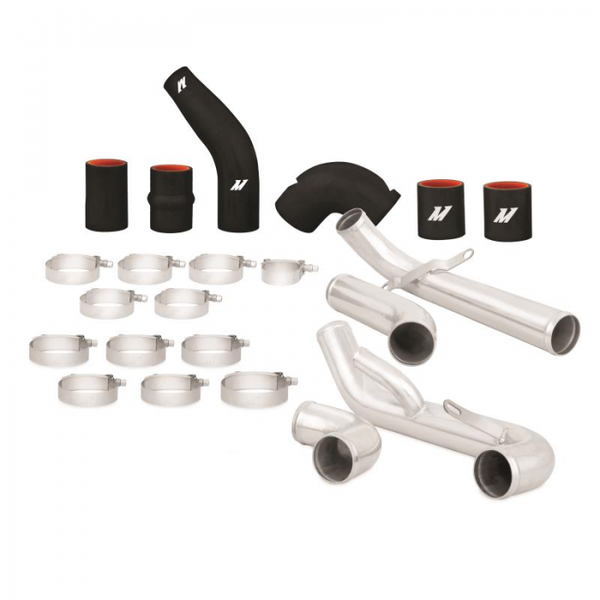

| SILICONE COUPLERS | UPPER PIPES SILICONE COUPLERS Upper Coupler 1: 1.73" / 2.44", 2.125" / 2.83" Upper Coupler 2: 2.44", 2.83" Upper Coupler 3: 2.44", 2.83" LOWER PIPE SILICONE COUPLERS Lower Coupler 1: 2.44" / 2.71", 2.83" / 3.11" Lower Coupler 2: 2.44", 2.83" Lower Coupler 3: 2.44", 2.83" |
| PIPE DIAMETER | Inner Diameter–2.375" Outer Diameter–2.50" |
| CONSTANT TENSION T-BOLT CLAMPS SPECS | (10) 2.75" T-Bolt Clamps (1) 2" T-Bolt Clamp (1) 3" T-Bolt Clamp |
| WEIGHT | 23 |
| TANK WALL THICKNESS | 3.5 |
| FIN PITCH | External: 6.35 fins per inch Internal: 7.5 fins per inch |
| OUTLET | 2.5 |
| CORE LENGTH | 19.5 |
| CORE HEIGHT | 12 |
| CORE WIDTH | 3.5 |
| INLET | 2.375 |
| CORE SIZE | 19.5 x 12 x 3.5 |
| OVERALL WIDTH | 4.5 |
| OVERALL HEIGHT | 13.7 |
| OVERALL LENGTH | 28.3 |
| CONSTRUCTION | Bar-and-Plate |
